All-in-One Energy Storage-JYA5000
- 8000 cycles, 10-year service life: Built with Grade-A LiFePO₄ cells. Designed for daily cycling with minimal capacity loss.
- Modular capacity: 5kWh – 16kWh: Three models to match different household or light commercial needs. Expandable options available on request.
- Better storage: Extremely low self-discharge rate.
- Built-in hybrid inverter: Supports both grid-tied and off-grid operation. 10ms UPS switchover keeps your loads running during outages.
- 3 charging modes: Solar, grid, or generator. With built-in MPPT, you can connect solar panels directly to start charging.
- RS485, CAN, RS232: Compatible with most inverter brands. Bluetooth/WiFi/GPS optional for remote monitoring.
- Simple installation: All-in-one design reduces installation time and complexity.
- We are actively looking for distributors: Technical training and spare parts support provided. OEM/ODM available.
High Energy Capacity
This product supports a customizable capacity from 5~48kWh, works with global 110V–120V/220V–230V voltages, and provides 10ms seamless UPS backup to ensure uninterrupted power.
Modular & integrated design for easy installation
Equipped with RS485/CAN/RS232 ports and dry contact, enabling seamless integration with inverters, solar panels, and smart home energy management systems (EMS).
Compatible with both new installations and existing PV systems.
Power When You Need It Most
One full charge keeps essential loads running through typical outages. With 8,000+ cycles and a 10-year lifespan, it‘s built for long-term reliability.
We grade and match every cell before assembly and run each unit through rigorous aging tests — so you get consistent performance and a battery that actually delivers on its promised lifespan.

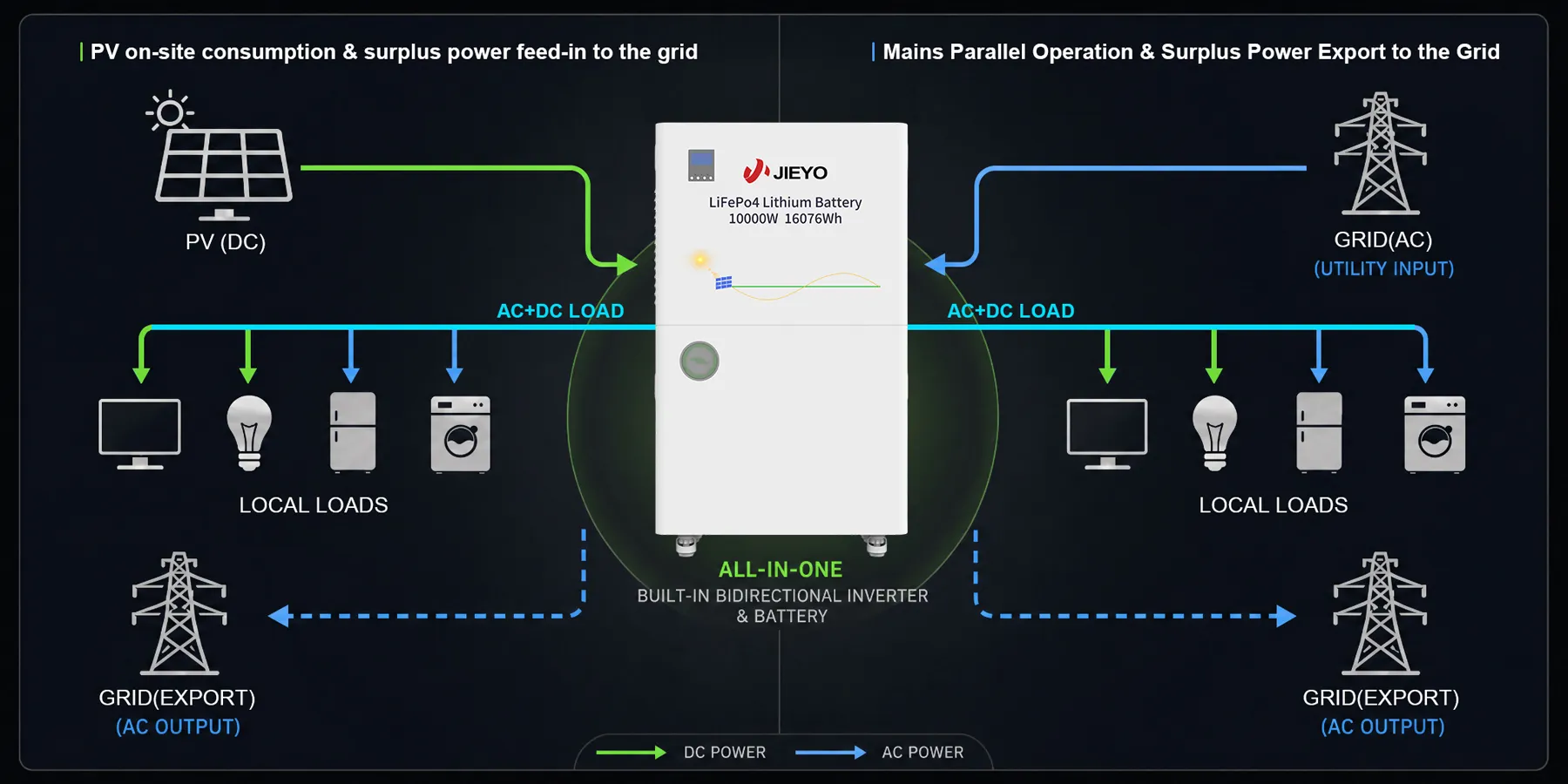

Turn Sunlight into Savings
Store solar energy during the day for use at night, or feed surplus power back to the grid where permitted. Check local regulations for net metering policies in your area.

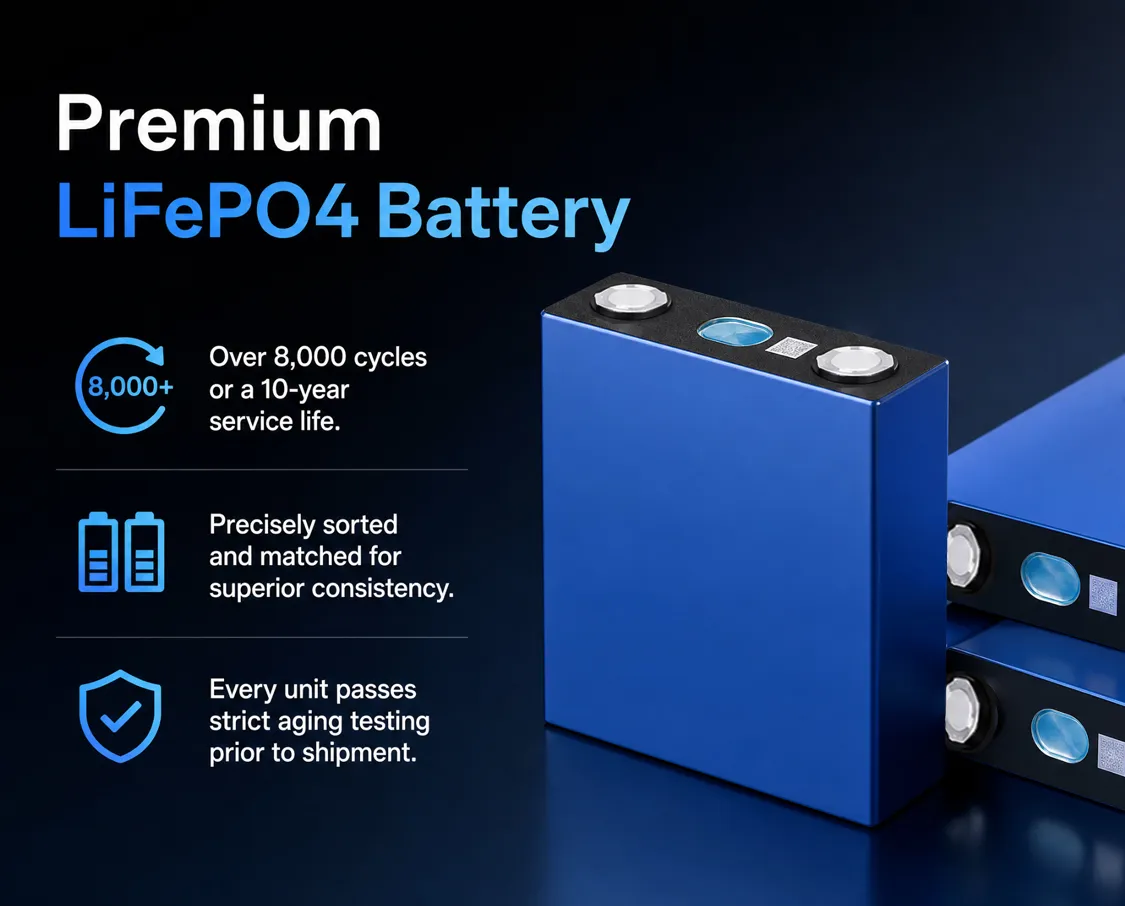

Built to Last, Tested to Prove It
We grade and match every cell before assembly, and run each unit through rigorous aging tests before shipment.
This ensures consistent performance, reduced degradation, and a battery that actually delivers on its promised lifespan.
Safety That Works While You Sleep
Integrated Smart BMS monitors voltage, current, and temperature in real time, with automatic protection against overcharge, over-discharge, over-current, short circuit, and extreme temperatures — ensuring safe and reliable operation over the full system lifetime.

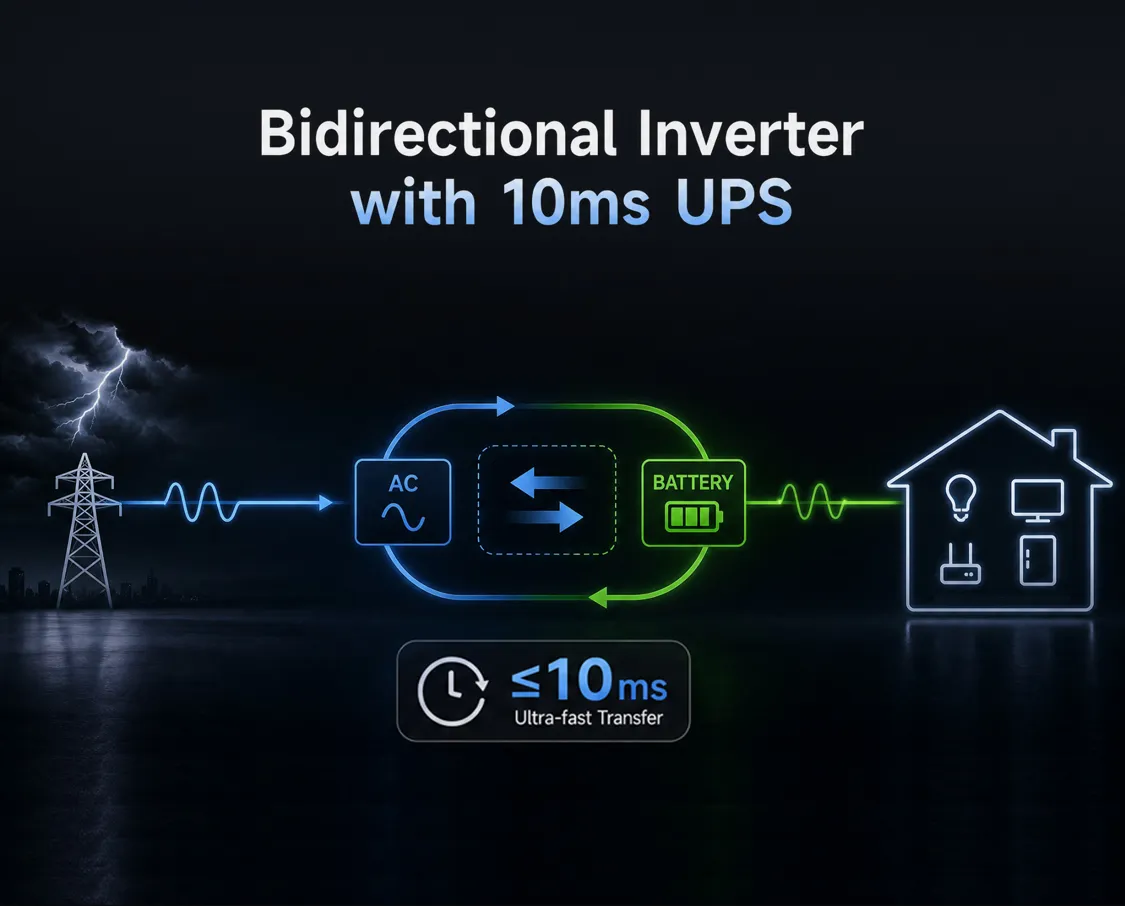

Switches to battery power in under 10 milliseconds
Your lights stay on, your appliances keep running.

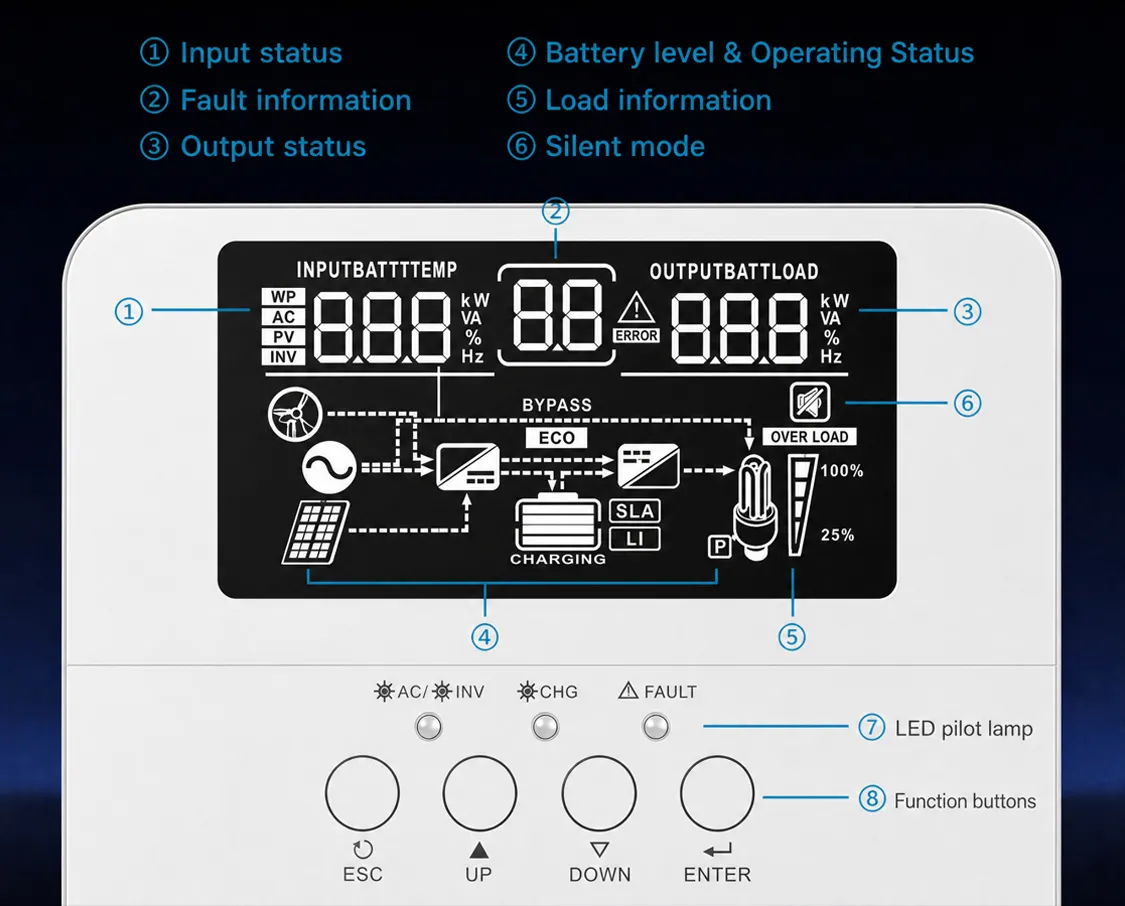

Everything at a Glance
Input, output, battery level, and fault alerts — all displayed on one screen. No guessing, no digging through manuals.

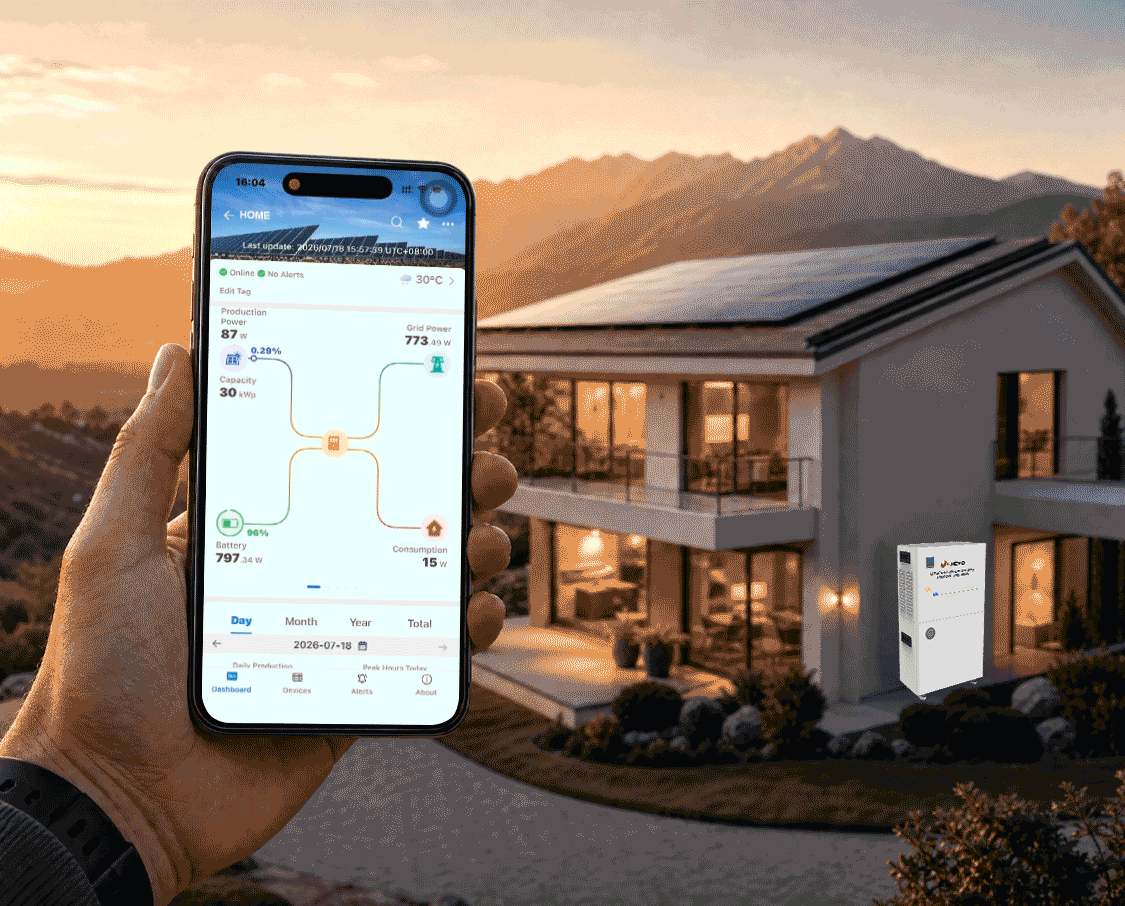

Your Home Energy, in Your Pocket
Monitor real-time generation, consumption, battery level, and grid status from anywhere. Adjust charge/discharge schedules, review historical data, and receive fault alerts — all from your phone.
Model Comparison – Find Your Fit
| MODEL | JYA5000 | JYA10000 | JYA15000 |
| General Specification | |||
| Battery Capacity | 5120Wh | 10240Wh | 16076Wh |
| Cell Chemistry | Lithium iron phosphate | ||
| Nominal Voltage | 51.2V | ||
| Operate Temperature | (-10 - 50°C (14°F-122°F) | ||
| Humidity | 15%~85%(no condensing) | ||
| Standard charge current | ≤50A | ≤100A | ≤150A |
| Standard discharge current | ≤50A | ≤100A | ≤150A |
| Maximum discharge current | ≤100A | ≤200A | ≤300A |
| Weight | 154-176LBS / 70-80KG | 286.6-308.6LBS / 130-140KGS | 297-308LBS / 135-140KG |
| Dimension WDH (mm) | 33.23*26.52*10.95 inch (844*600*278mm) | 49.57*23.62*10.95 inch (1259* 600*278 mm) | 44.48*29.52*10.28 inch (1130*750*275 mm) |
| Communication function | RS485、RS232、CAN | ||
| Bluetooth/WiFi/GPS | Optional | ||
| Warranty | 8000 cycles or 10 years | ||
| Certification | CE,FCC,UN38.3 | ||
| Inverter | |||
| Power | 5KW-8KW-10KW | ||
| AC input | 110V~120V/50~60Hz (US/JP) 220V~230V /50~60Hz(CN,EU,UK) 380V Optional | ||
| PV input(Built-in Mppt) | 120-500V/40A | ||
| AC Output | 110V-120V/50-60Hz 220V-230V/50-60Hz | ||
| Wireless WiFi | Yes | ||
| Solar Panel(Optional) | |||
| Power | ≤2400W | ≤2400W | ≤20000W |
FAQ and Download
Find quick answers about our portable power stations, or download technical specs, certificates, and manuals.
What does “all-in-one” mean?
The inverter, battery, and BMS are integrated into a single unit.
No need to buy separate components or worry about compatibility — just connect solar panels and start using it.
What’s the difference between the models?
| Model | Capacity | Typical Use |
|---|---|---|
| JYA5000 | 5.12 kWh | Small homes, apartments, light backup |
| JYA10000 | 10.24 kWh | Medium homes, daily cycling + backup |
| JYA15000 | 16.08 kWh | Large homes, high consumption, whole-home backup |
Choose based on your daily electricity consumption and backup needs.
What is the cycle life and warranty?
All models: 8,000 cycles or 10 years (whichever comes first).
We are actively looking for distributors. For qualified partners, we provide:
Free repair parts and technical support during warranty
Remote technical training and maintenance guidance for first-time authorized dealers (face-to-face training available if needed)
Key customers: additional 2%-5% maintenance spare parts, with the possibility of establishing spare parts warehouses and maintenance centers
Warranty repairs: the distributor arranges return shipping to the nearest JIEYO repair center.
For DOA cases within 30 days of customer receipt, replacement and logistics claim are processed after our after-sales confirmation.
What certifications do you have?
Standard certifications: CE, FCC, UN38.3 can be provided for orders once a certain volume threshold is met.
For initial orders, we work with you to set up a certification support path that aligns with your market entry and volume commitments.
Contact us to discuss your target market and volume plan.
Can it work without solar panels?
Yes. It charges from the grid and acts as a backup power supply during outages.
Solar panels are optional — you can add them later.
How much can I save on my electricity bill?
Savings depend on local electricity rates, solar generation, and system usage.
A typical residential system can offset 30-50% of peak-hour electricity costs with peak shaving.
Contact us with your electricity bill for a site-specific estimate.
What are the shipping dimensions and weight?
| Model | Weight | Dimensions (W×D×H) |
|---|---|---|
| JYA5000 | 70-80kg | 844×600×278mm |
| JYA10000 | 130-140kg | 1259×600×278mm |
| JYA15000 | 135-140kg | 1130×750×275mm |
Freight cost depends on destination — contact us for a shipping quote.
Still have questions?
Contact us for technical specifications, custom configurations, or distributor inquiries.
