16076Wh All In One ESS-JYA15000
- Longer service life:Stable chemistry enables low-maintenance operation.
- Integrated BMS: Provides comprehensive circuit protection against overloading, short circuits, and other abuse conditions.
- Better storage: Extremely low self-discharge rate
- Quickly recharge:save time and boost productivity with superior charge/discharge efficiency.
- Extreme heat tolerance: Up to +60°C ambient temperature.
High Energy Capacity
This product supports a customizable capacity from 5~48kWh, works with global 110V–120V/220V–230V voltages, and provides 10ms seamless UPS backup to ensure uninterrupted power.

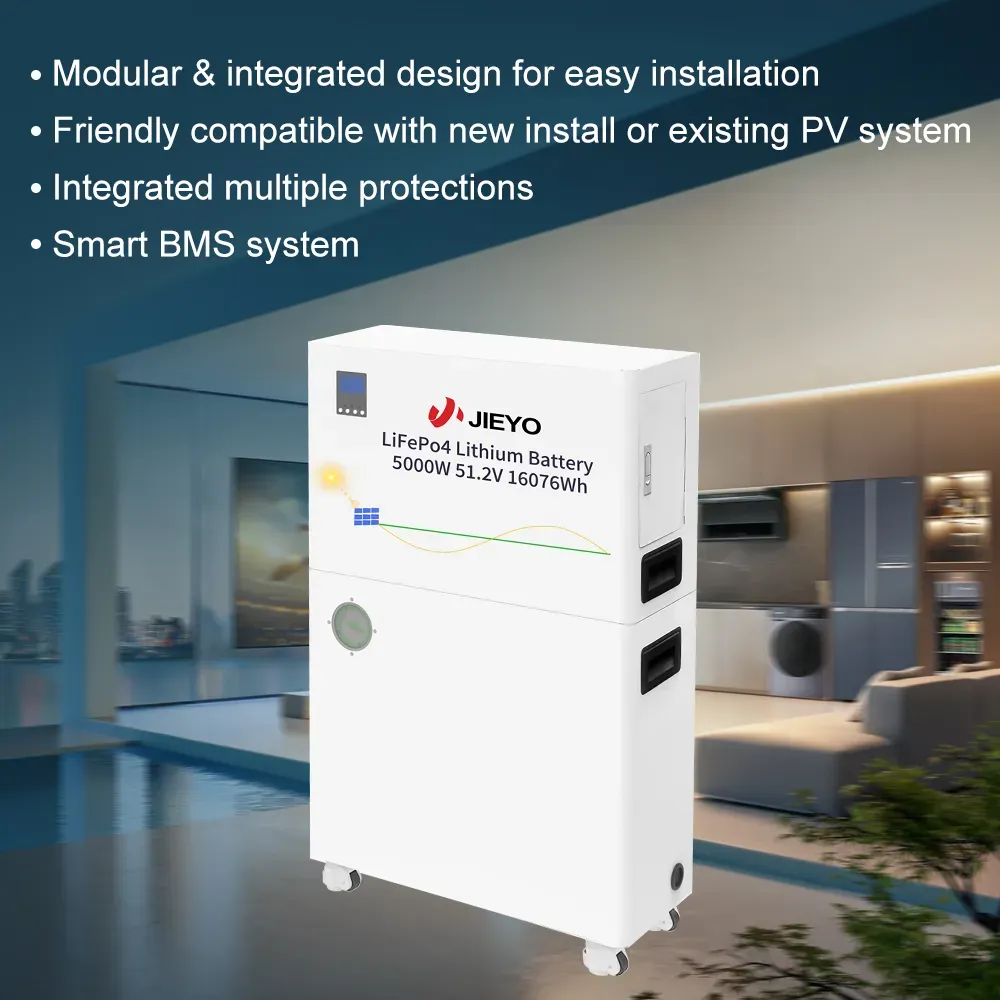

Modular & integrated design for easy installation
Equipped with RS485/CAN/RS232 ports and dry contact, enabling seamless integration with inverters, solar panels, and smart home energy management systems (EMS).
Friendly compatible with new install or existing PV system
High Energy Density & Long Cycle Life
Featuring premium LiFePO₄ cells, a pure sine wave bidirectional inverter, and an integrated BMS, this product is engineered for long service life and exceptional durability.
Model Comparison – Find Your Fit
| MODEL | JYA5000 | JYA10000 | JYA15000 |
| General Specification | |||
| Battery Capacity | 5120Wh | 10240Wh | 16076Wh |
| Cell Chemistry | Lithium iron phosphate | ||
| Nominal Voltage | 51.2V | ||
| Operate Temperature | (-10 - 50°C (14°F-122°F) | ||
| Humidity | 15%~85%(no condensing) | ||
| Standard charge current | ≤50A | ≤100A | ≤150A |
| Standard discharge current | ≤50A | ≤100A | ≤150A |
| Maximum discharge current | ≤100A | ≤200A | ≤300A |
| Weight | 154-176LBS / 70-80KG | 286.6-308.6LBS / 130-140KGS | 297-308LBS / 135-140KG |
| Dimension WDH (mm) | 33.23*26.52*10.95 inch (844*600*278mm) | 49.57*23.62*10.95 inch (1259* 600*278 mm) | 44.48*29.52*10.28 inch (1130*750*275 mm) |
| Communication function | RS485、RS232、CAN | ||
| Bluetooth/WiFi/GPS | Optional | ||
| Warranty | 8000 cycles or 10 years | ||
| Certification | CE,FCC,UN38.3 | ||
| Inverter | |||
| Power | 5KW-8KW-10KW | ||
| AC input | 110V~120V/50~60Hz (US/JP) 220V~230V /50~60Hz(CN,EU,UK) 380V Optional | ||
| PV input(Built-in Mppt) | 120-500V/40A | ||
| AC Output | 110V-120V/50-60Hz 220V-230V/50-60Hz | ||
| Wireless WiFi | Yes | ||
| Solar Panel(Optional) | |||
| Power | ≤2400W | ≤2400W | ≤20000W |
FAQ and Download
Find quick answers about our portable power stations, or download technical specs, certificates, and manuals.
Are you a manufacturer or a trading company?
We are a 20 years Ni-MH, Li-ion, LiFePO4 battery manufacturer, approved by ISO9001, ISO14001, SA8000
Do you offer OEM/ODM services?
Yes, we offer OEM/ODM with custom design, Grade‑A cells (LiFePO₄ / sodium‑ion), full inspection, certifications, and 10‑year warranty & support.
What certifications do your batteries have?
Our batteries hold CE, CB, RoHS, UN38.3, UL, etc., meeting target market regulations.
What info is needed for customization?
Provide battery type, Size, capacity, voltage, C-rate, application, and region-specific certifications.
Can we visit your factory?
Yes, welcome to visit our Huizhou factory; please schedule with our sales team in advance.
