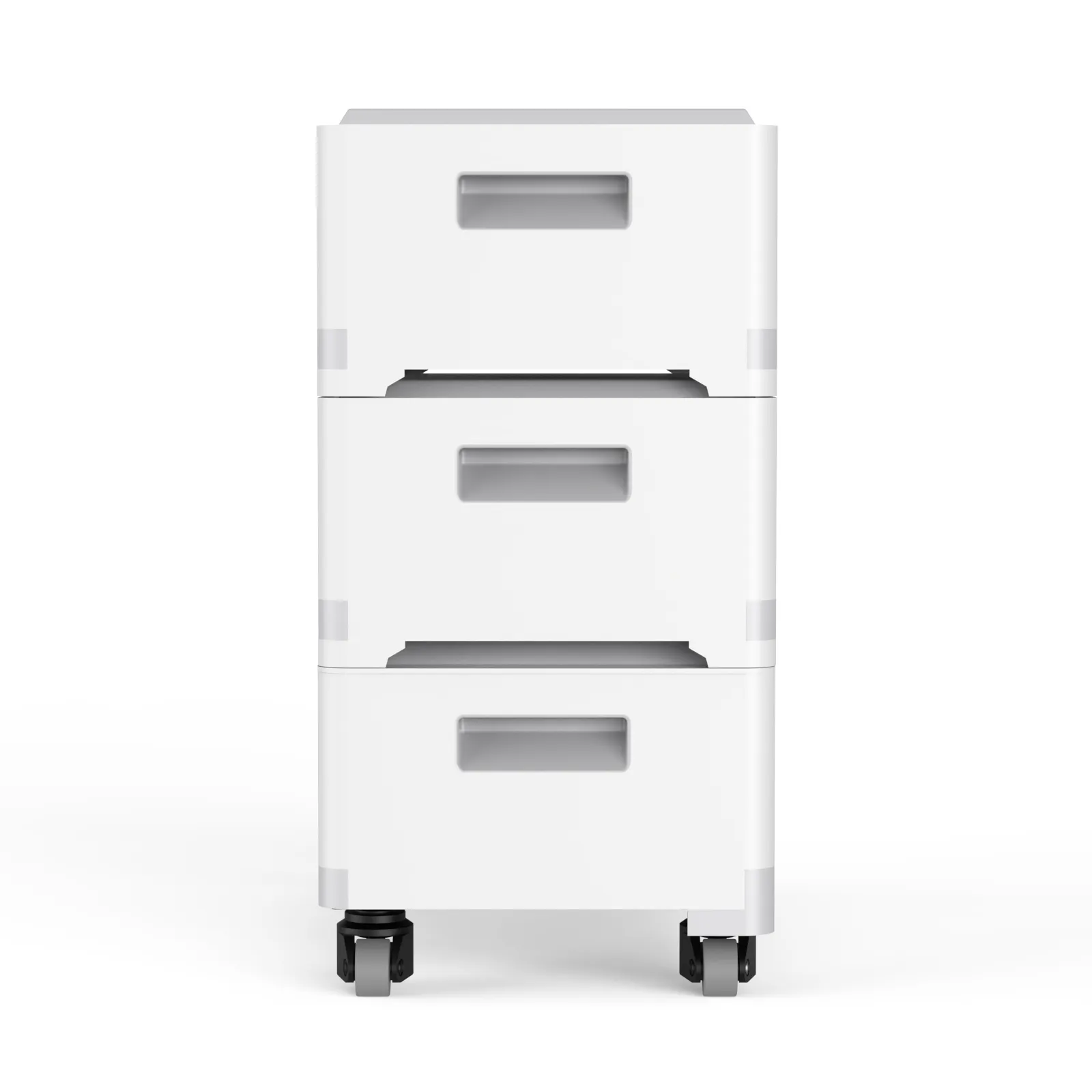

5120WH Stackable LiFePO4 Residential Battery- JYS5000
- Utilizing Lithium Iron Phosphate electro chemistry.
- which can be scaled up with modular stacking to 16 parallel.
- Equipped with leading BMS, it optimizes energy use.
- Long cycle life: over 8,000 cycles at 80% DOD.
- 10-year warranty & technical support
Long service life and ultra safe

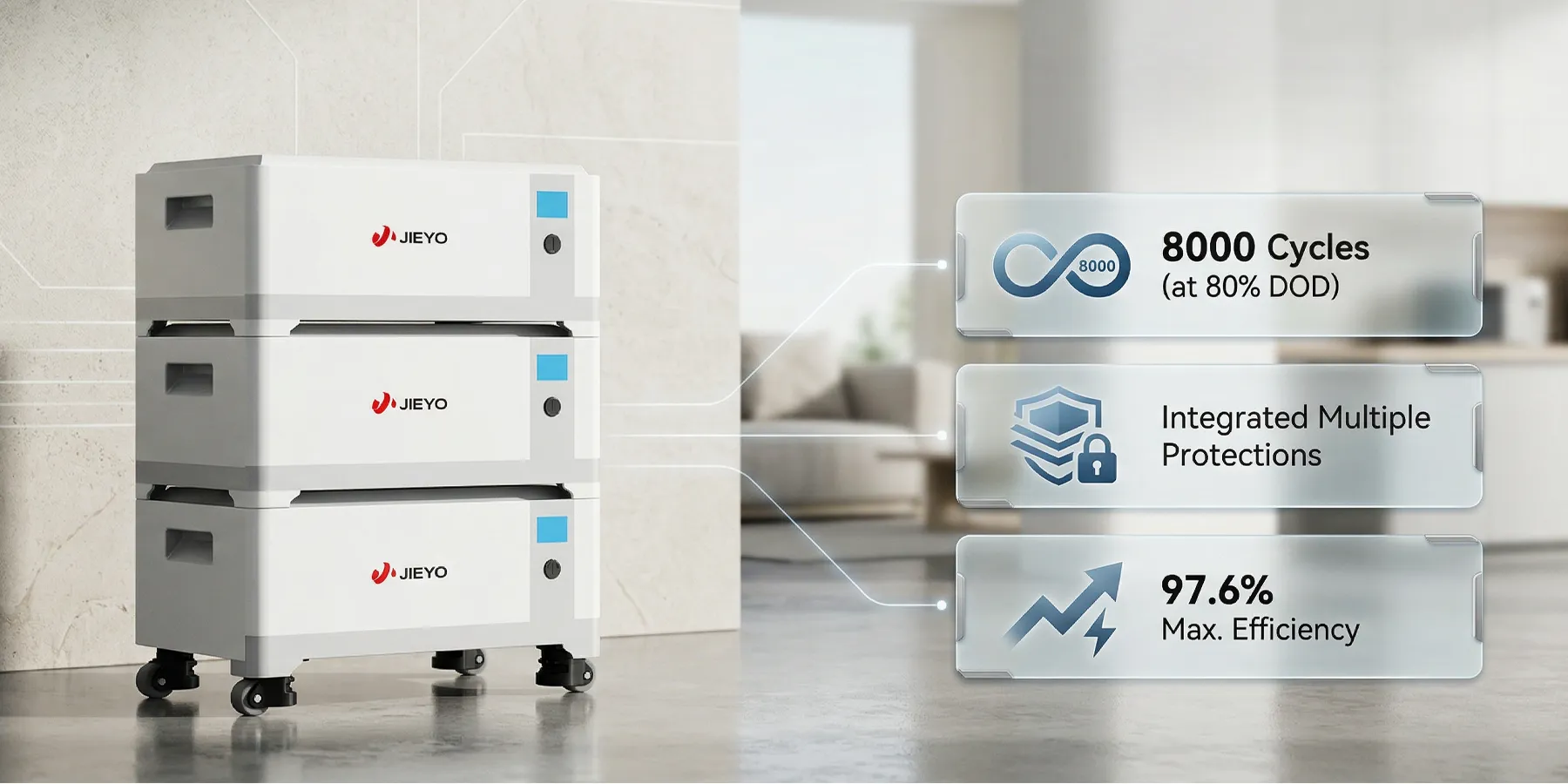

Consisting of Tier one A+ lithium iron phosphate batteries with a cycle life of over 8,000 cycles and 97.6% Max. efficiency
The intelligent BMS accurately monitors data from individual cells to the entire battery pack, providing full protections to extend battery system life. It also manages key functions such as battery pack paralleling and inverter communication, ensuring stable and reliable operation.
Excellent adaptability, strong compatibility

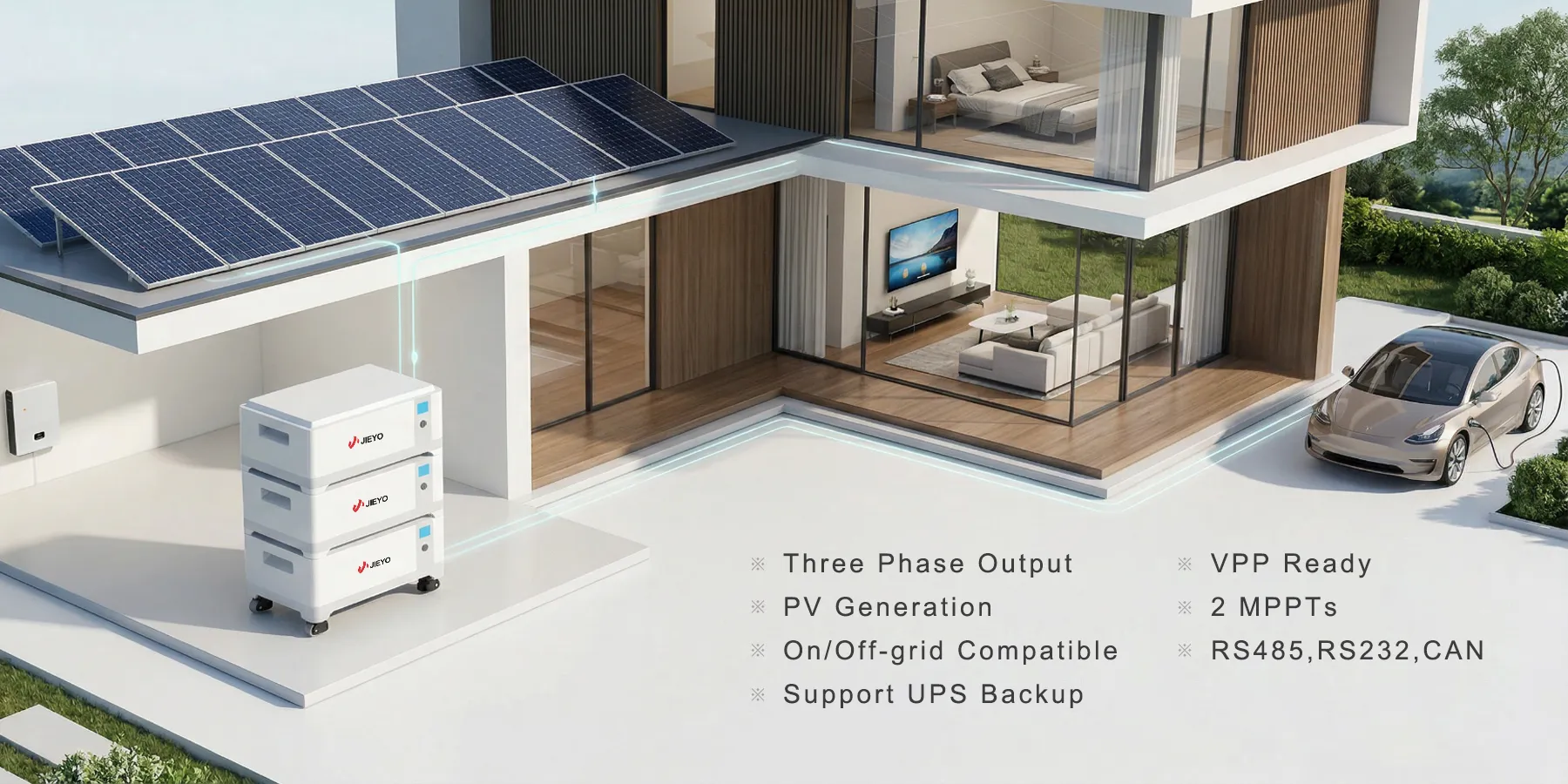

Whether AC-coupled or DC-coupled, this is perfectly compatible and, in combination with solar energy, can help homeowners achieve a wide range of functions such as saving electricity, home energy management.
This HV Residential solar battery is compatible with a number of high voltage 3-phase inverter brands.
Friendly compatible with new install or existing PV system.
Easy Installation & Maintenance

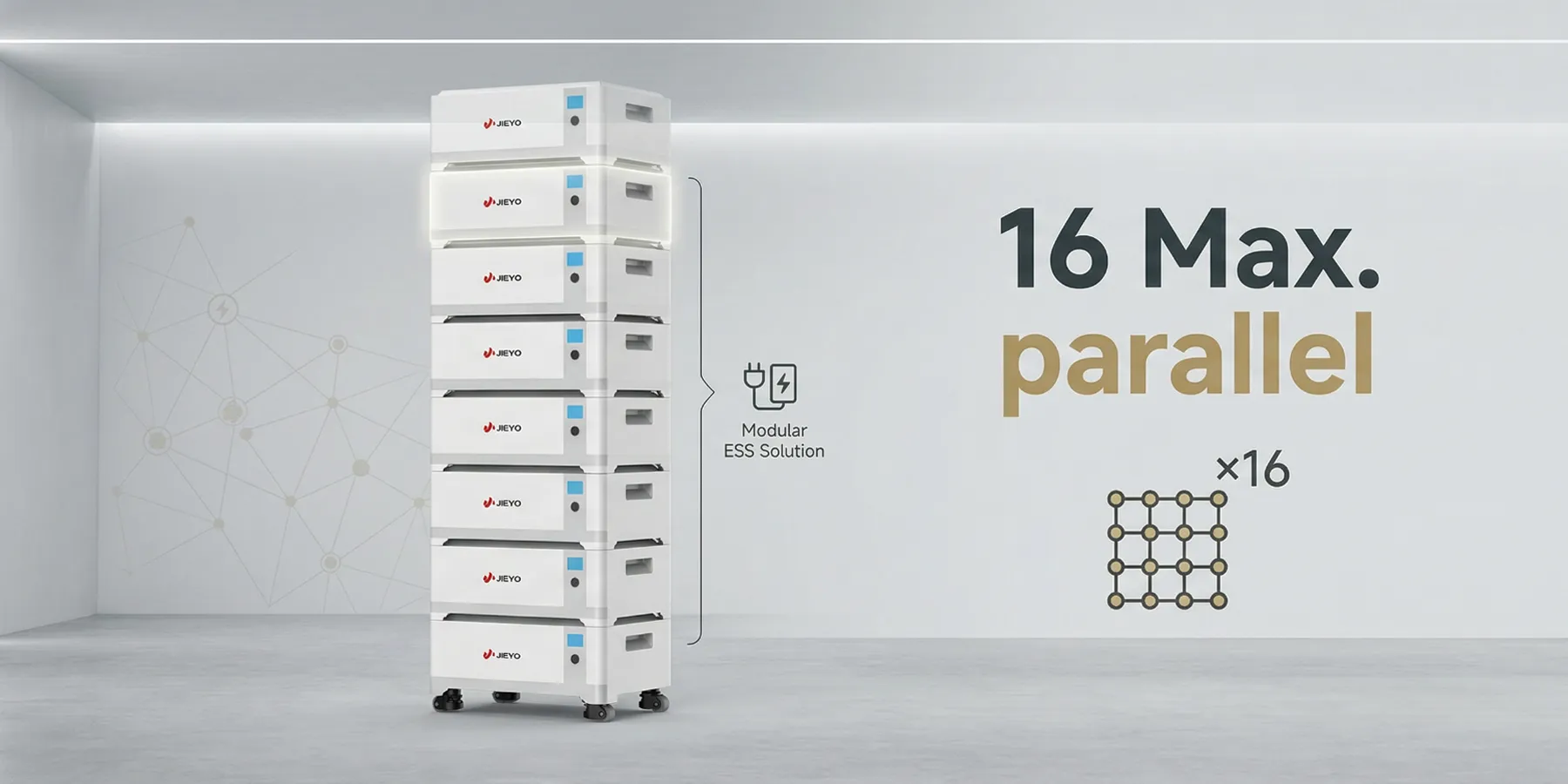

Modular and integrated design ensures easy installation. Featuring a plug-and-play structure, it simplifies setup and reduces complicated wiring between the BMS and battery modules. Supports up to 16 systems in parallel.

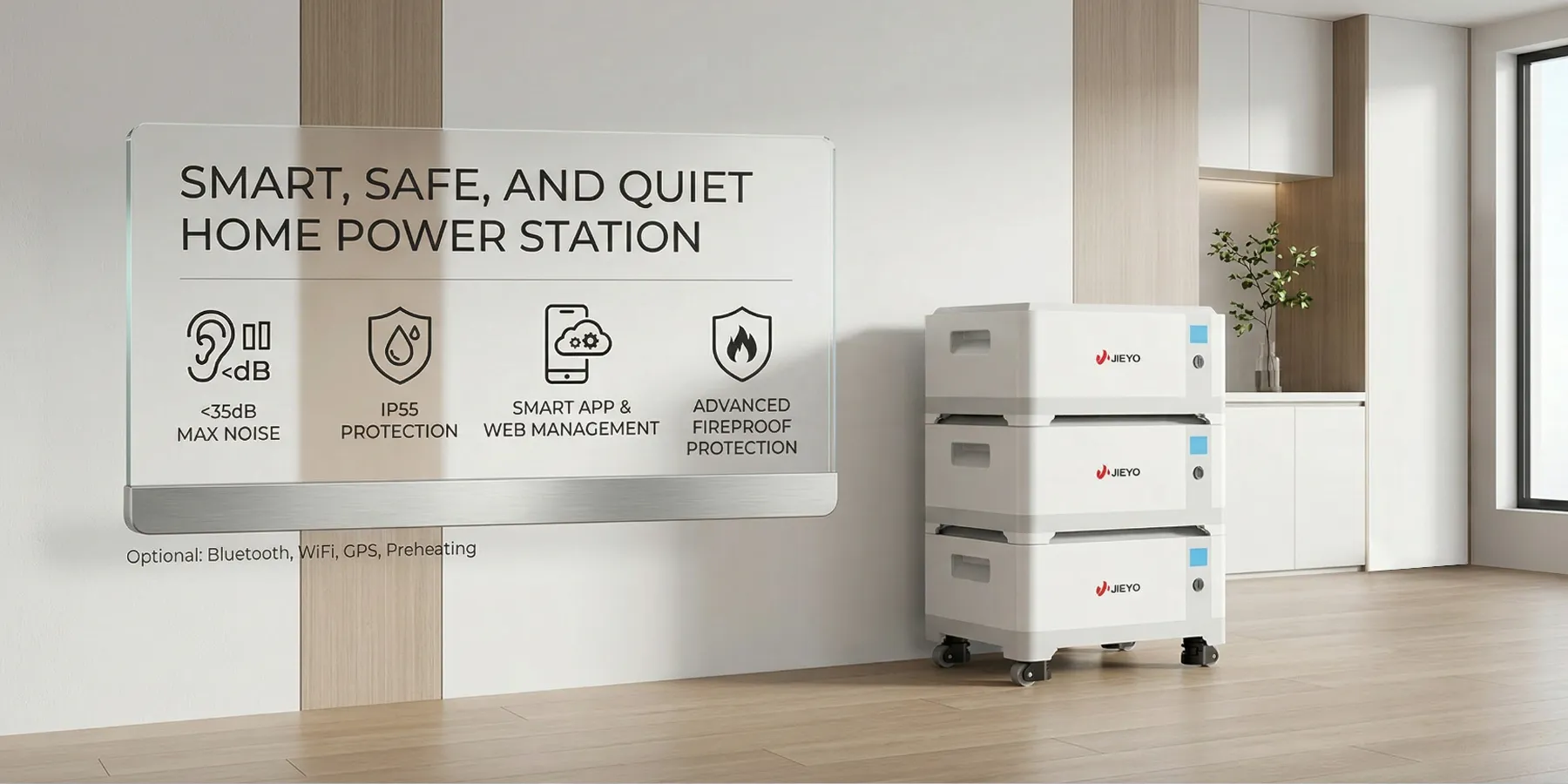

Safe, quiet and smart power
It keeps your space peaceful with quiet operation, stays reliable against daily environmental challenges, lets you manage it smartly from afar via App or Web, and can be tailored to your needs with extra handy features—powering your home smoothly and worry-free.
Model Comparison – Find Your Fit
| MODEL | JYS5000 | JYS10000 | JYS25000 | JYS48210N |
| Battery Capacity | 5120Wh | 10240Wh | 25600Wh | 10080Wh |
| Cell Chemistry | Lithium iron phosphate | Sodium-ion | ||
| Nominal Voltage | 51.2V | 51.2V | 51.2V | 48V |
| Standard Charge Current | ≤50A | ≤100A | ≤150A | ≤100A |
| Standard Discharge Current | ≤50A | ≤100A | ≤150A | ≤100A |
| Maximum Discharge Current | ≤100A | ≤200A | ≤300A | ≤150A |
| Weight | 99~110lbs/45~50kg | 198~209lbs/90~95kg | 496~507lbs/225~230kg | 242.51 lbs/110kg |
| Dimension WDH | 33.85*12.20*8.86 inch 860*310*225mm | 33.85*12.2*16.14 inch 860*310*410mm | 33.85*12.20*38 inch 860*310*965mm | 24.61*20.47*20.87 inch 625*520*530mm |
| Communication Function | RS485, RS232, CAN | |||
| Bluetooth | ✓ | |||
| WiFi | Optional | |||
| GPS | Optional | |||
| Preheating | Optional | |||
| Fireproof | Optional | |||
| Cycle Life | 8000cycles @80%DOD@25°C | 6000cycles @80%DOD@25°C | ||
| Operate Temperature | -10 ~ 50°C (14°F~122°F) | -40~70°C(-40°F~158°F) | ||
| Low-temperature Charge Capability | / | support -20°C 0.1C charging | ||
| Humidity | 15%~85%(no condensing) | 15%~85%(no condensing) | ||
| Certification | CE,FCC,UN38.3 | CE,UN38.3,UL1642,IEC62133 | ||
| --- Inverter (optional) | ||||
| Power | 3~5KW | 5~10KW | 10~15KW | 5KW |
| DC Input | 40V~60V | |||
| AC Input | 110V~120V/50~60Hz 220V~230V/50~60Hz | |||
| PV Input (Built-in Mppt) | 120~500V/50A | 120~500V/100A | 120~500V/150A | 120~500V/100A |
| AC Output | 110V~120V/50~60Hz 220V~230V/50~60Hz | --- Solar Panel (Optional) | ||
| Power | ≤2200W | ≤4400W | ≤17600W | ≤2500W |
FAQ and Download
Find quick answers about our portable power stations, or download technical specs, certificates, and manuals.
Are you a manufacturer or a trading company?
We are a 20 years Ni-MH, Li-ion, LiFePO4 battery manufacturer, approved by ISO9001, ISO14001, SA8000
Do you offer OEM/ODM services?
Yes, we offer OEM/ODM with custom design, Grade‑A cells (LiFePO₄ / sodium‑ion), full inspection, certifications, and 10‑year warranty & support.
What certifications do your batteries have?
Our batteries hold CE, CB, RoHS, UN38.3, UL, etc., meeting target market regulations.
What info is needed for customization?
Provide battery type, Size, capacity, voltage, C-rate, application, and region-specific certifications.
Can we visit your factory?
Yes, welcome to visit our Huizhou factory; please schedule with our sales team in advance.
