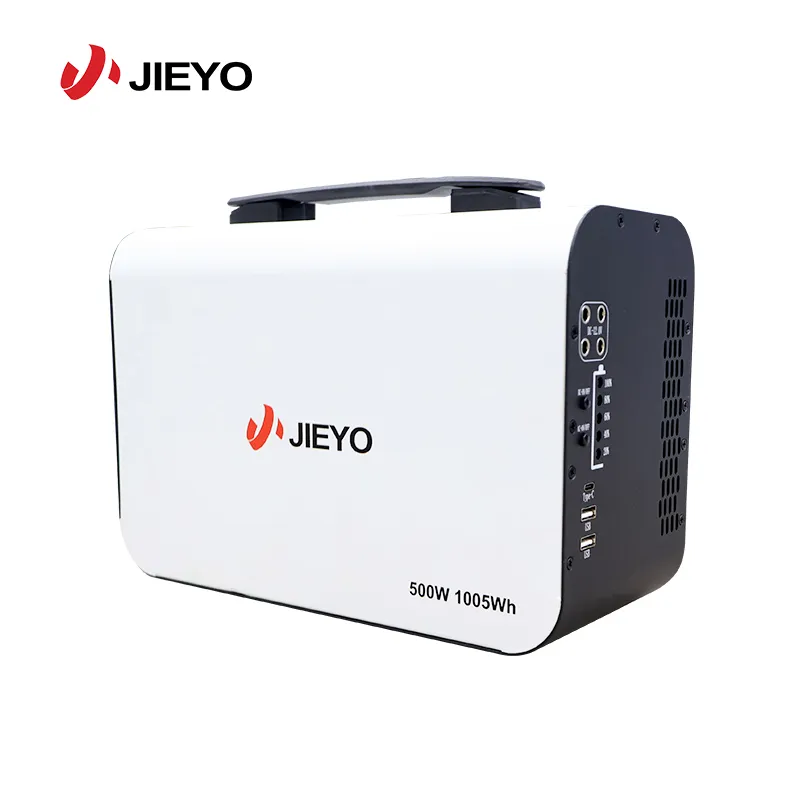

JIEYO 500W 1005Wh Portable Power Station interface panel

JIEYO Portable Power Station outdoor usage

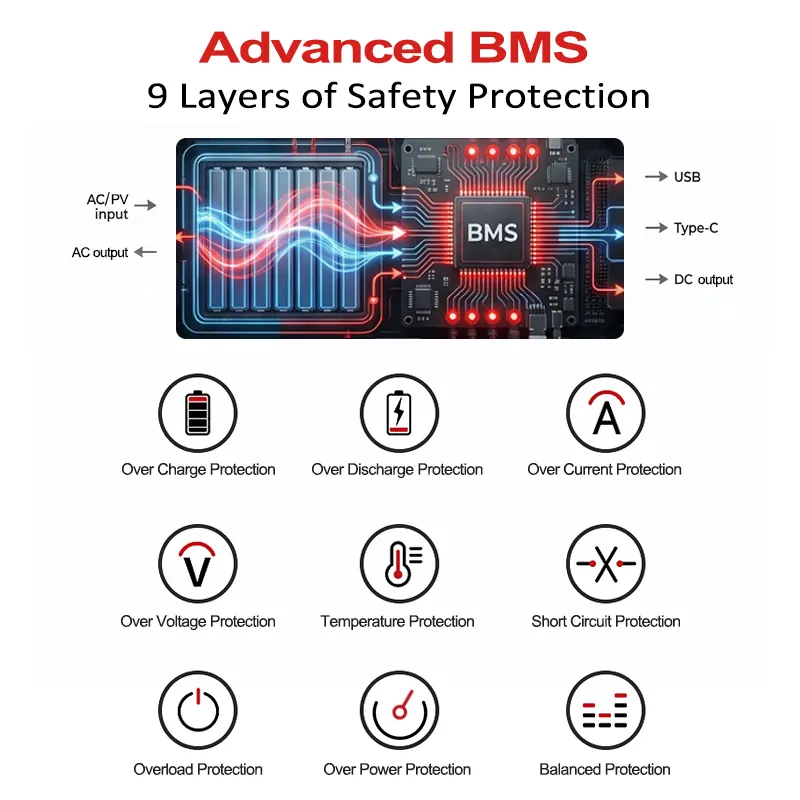

JIEYO Portable Power Station BMS safety protection

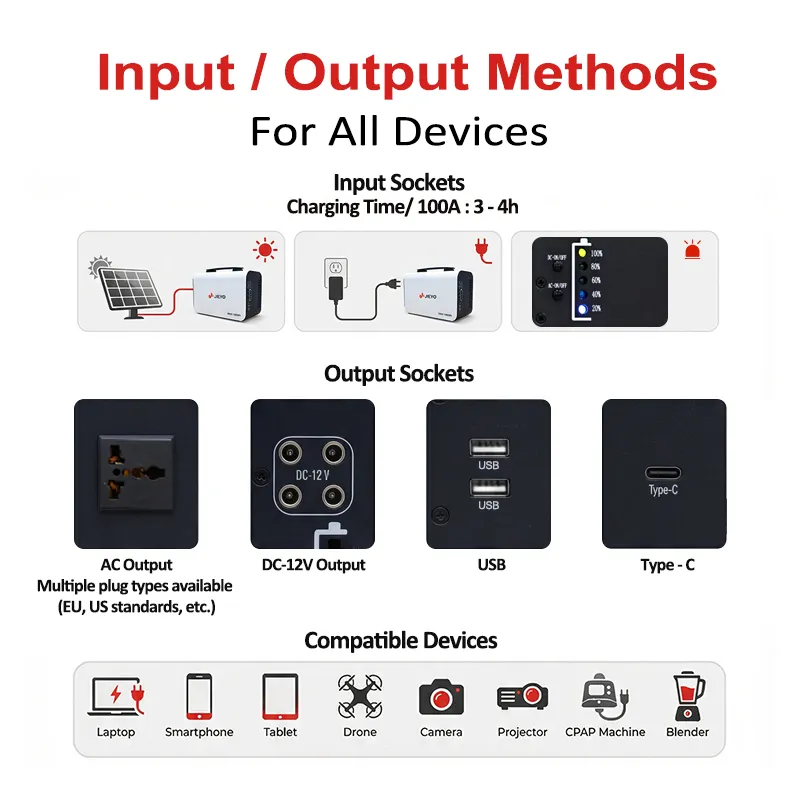

JIEYO Portable Power Station input output ports

500W 1005wh Solar Portable Power Station-JYE500-1005

10-Year Battery LifePremium LiFePO₄ cells with over 8,000 cycles.
2-3H Fast Charging: Full charge from wall outlet in just 2 to 3 hours.
Supports solar panel charging input:With an optional 300W solar panel, it is ideal for outdoor use.
Zero interruption：Pure Sine Wave Bidirectional Inverter with 10ms UPS Backup, Charge while powering devices.
Universal Compatibility:500W output, compatible with 80% of appliances.

Power That Stays On When the Grid Goes Off

Cold weather is no longer a problem. With a steady power input, the built-in self-heating film activates when temperatures fall below 0°C (32℉), keeping the battery at an ideal 25°C (77℉) for optimal performance and longer lifespan.

Your power stays consistent and efficient, whatever the weather.

Universal Compatibility

Estimated runtime based on 1,152Wh capacity. Actual time may vary by device and usage.

Electric Fan
(50 W)

16.08 Hours

WiFi Router
(12W)

67 Hours

TV
(80W)

10.05 Hours

Smartphone Charger
(15W)

53.6Hours

LED Bulb
(10W)

80.4 Hours

Laptop
(10W)

~12.37 Hours

Mini Fridge
(180W)

4.47 Hours

Speaker
(30W)

4.47 Hours26.8Hours

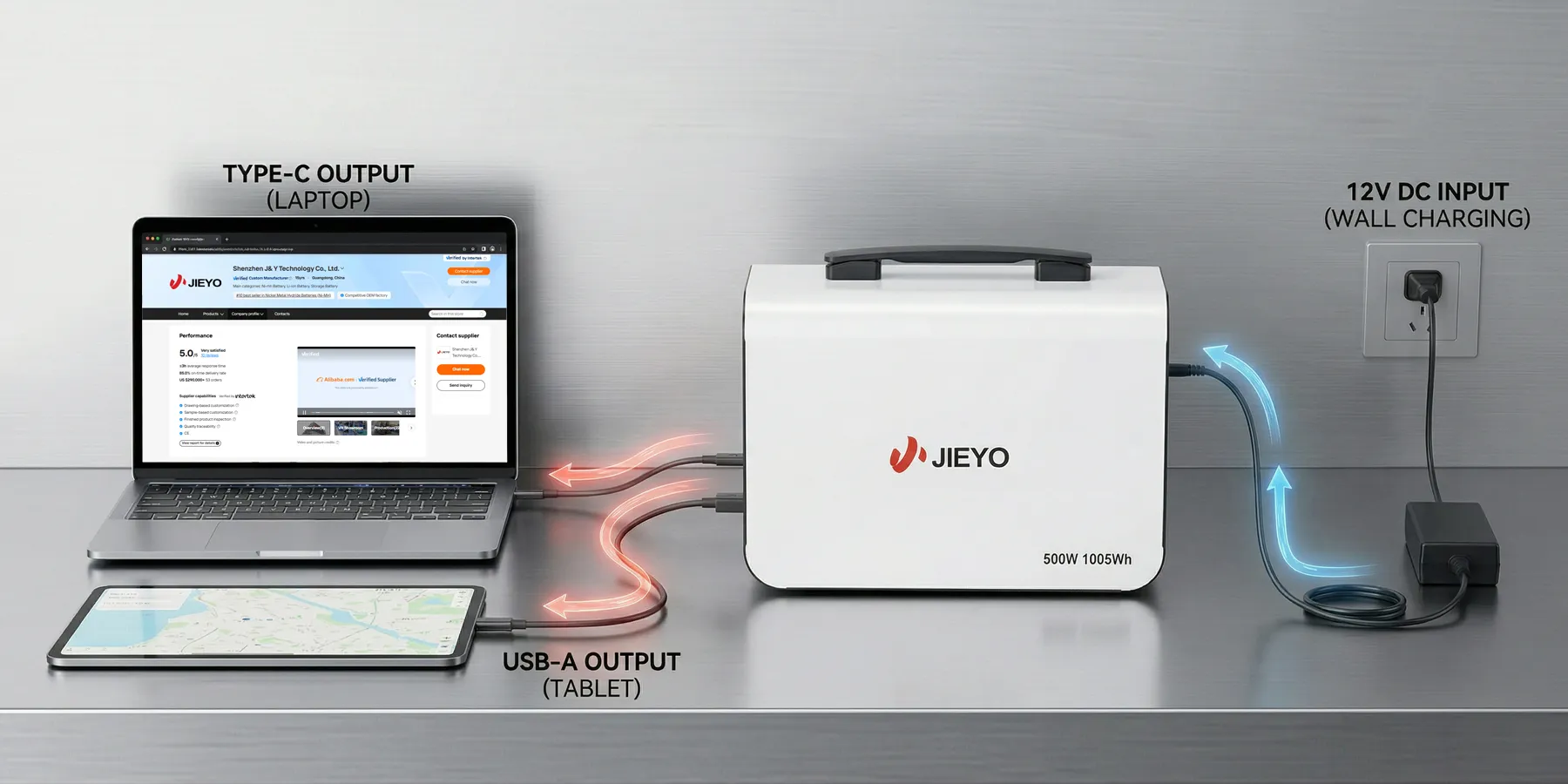

12V-DC4,500W-AC1,USB2,Type C1

PV input & AC input

Built to last & Easy to carry

Metal housing, sturdy, durable and wear-resistant

Portable handle design for easy transport

Model Comparison – Find Your Fit

Model	JYE500-1005	JY1K1152	JY2K2304	JY3K2688	JY3K3200	JY3K4378	JY5K5376	JY3K7200	JY3K8038
Rated Output Power	500 W	1,200 W	2,200 W	3,000 W	3,000 W	3,000 W	5,000 W	3,600 W	3,600 W
Capacity	1,005 Wh	1,152 Wh	2,304 Wh	2,688 Wh	3,200 Wh	4,378 Wh	5,376 Wh	7,200 Wh	8,038 Wh
Battery Chemistry	LiFePO₄
Rated DC Voltage	3.2 V	25.6 V	25.6 V	25.6 V	25.6 V	25.6 V	51.2 V	25.6 V	25.6 V
Max Charge Current	165 A	20 A	20 A	35 A	40 A	40 A	35 A	60 A	60 A
Max Discharge Current	150 A	60 A	60 A	120 A	120 A	120 A	100 A	150 A	150 A
AC ChargingPort (car)	/	/	/	/	250V 32A	250V 32A	250V 32A	250V 32A	250V 32A
Bidirectional Multifunctional Inverter	Pure sine wave, 110V/230V selectable, efficiency ≥90%
UPS Switchover Time	≤ 10 ms
Solar Input	11-55V / 10A	12-30V / 20A	12-60V / 20A	30-90V / 40A	30-90V / 40A	30-90V / 40A	120-500V / 30A	60-430V / 30A	60-430V / 30A
Solar Panel (Optional)	Up to 300 W	Up to 600 W	Up to 800 W	Up to 1,600 W	Up to 1,600 W	Up to 1,600 W	Up to 4,000 W	Up to 4,000 W	Up to 4,000 W
AC Input	90-280V / 45-65Hz	110-120V / 50-60Hz 220-230V / 50-60Hz
USB Output	2 × 60W	1 × 60W	1 × 60W	2 × 60W	2 × 60W	2 × 60W	2 × 80W	2 × 60W	2 × 60W
USB-C Output	1 × 60W	1 × 60W	1 × 60W	2 × 60W	2 × 60W	2 × 60W	2 × 80W	2 × 60W	2 × 60W
12V DC Output	1 × 48W	1 × 60W	1 × 60W	2 × 60W	2 × 60W	2 × 60W	2 × 80W	2 × 60W	2 × 60W
Car Outlet	/	12V/10A (120W)
Cycle Life	8,000 cycles @80%DOD@25°C
Weight (N.W./G.W.)	7 kg / 8.5 kg	18 kg / 21 kg	34 kg / 38 kg	42 kg / 46 kg	49 kg / 54 kg	59 kg / 64 kg	79 kg / 83 kg	85 kg / 89 kg	93 kg / 98 kg
Dimensions (L×W×H)	300 × 130 × 200 mm	380 × 280 × 230 mm	405 × 380 × 265 mm	405 × 380 × 265 mm	435 × 380 × 265 mm	475 × 485 × 330 mm	500 × 515 × 385 mm	500 × 515 × 385 mm	500 × 515 × 385 mm
Enclosure Protection	IP20	IP54
Optional	/	Bluetooth / WiFi / GPS
Remarks:	1. Charging temperature 0°C~55°C (32°F~131°F) 3. Storage temperature 0°C~35°C (32°F~95°F)				2. Discharging temperature -20°C~65°C (-4°F~149°F) 4. Storage humidity <70%
